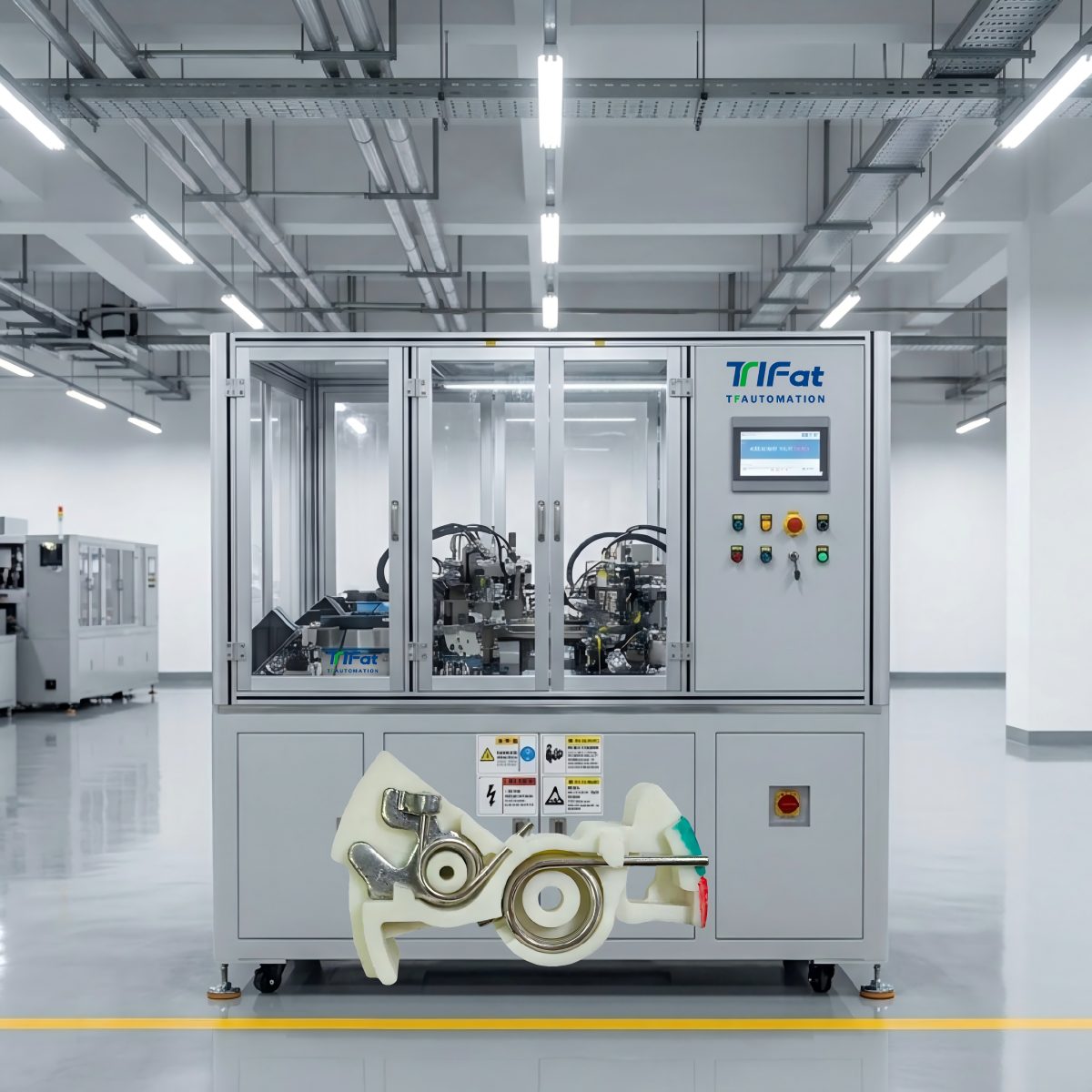

MCCB Riveting Machine For Mechanism Parts

Equipment Overview

The MCCB Mechanism Riveting Machine is a specialized automated solution designed for assembling and riveting key mechanism components in Molded Case Circuit Breakers (MCCB).

This equipment integrates automatic feeding, precise positioning, and servo-controlled riveting processes to ensure strong mechanical joints and accurate assembly. It is specifically engineered for critical mechanism parts such as linkages, levers, and support structures, where riveting quality directly affects the performance and reliability of the circuit breaker.

With advanced servo riveting technology, the machine provides precise control of force, displacement, and speed, ensuring consistent riveting quality and preventing deformation or damage to components.

The system is ideal for manufacturers seeking to improve production efficiency, reduce labor dependency, and achieve high-quality standardized assembly.

Main Functions

• Automatic feeding of mechanism components
• Multi-part positioning and alignment
• Servo-controlled riveting process
• Riveting force and displacement control
• Multi-point riveting capability
• Riveting quality monitoring
• NG detection and automatic rejection
• Automatic unloading of finished assemblies

Technical Specifications

After-Sales Service & support

We are committed to long-term cooperation with full technical support:

✅1-Year Free Warranty ：Covers all non-human damages. Replacement and repair included.

✅Lifetime Maintenance Support：We offer lifelong technical assistance and spare parts supply.

✅On-Site Installation & Commissioning：Professional engineers are available to visit your site for setup .

✅Operator Training：On-site or remote training to ensure your team can run the machine independently.

✅Remote Technical Support：Quick response via video call, remote control, Email, WhatsApp, and WeChat.

References & Case Studies

Our equipment in China	Our equipment in Europe

Q&A (FAQ)

Q1: What type of riveting technology is used?
A: Servo-controlled spin riveting, ensuring precise force and displacement control.

Q2: Why is riveting quality important for MCCB?
A: It directly affects the mechanical performance and lifespan of the breaker mechanism.

Q3: Can the machine handle multiple riveting points?
A: Yes, it supports multi-point riveting in a single setup.

Q4: Is the machine suitable for different MCCB models?
A: Yes, it supports flexible tooling and quick changeover.

Q5: Can it be integrated into a full production line?
A: Yes, it is designed for seamless integration with automated lines.
